charging for Ni-MH/Ni-Cd AA/AAA and Alkaline AA AAA Batteries

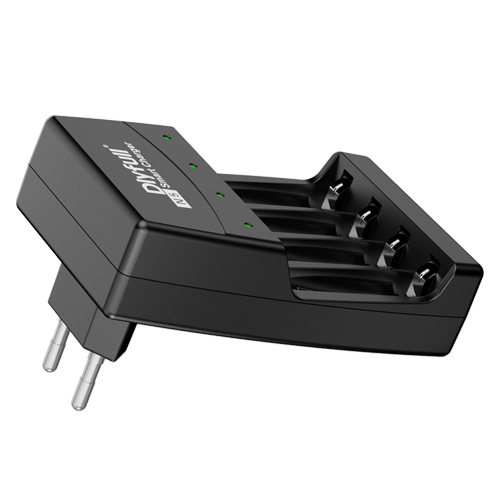

Four Slots Wall Plug Ni-MH/Cd Charger - N5

Dlyfull's 4-slot smart charger features independent channels, pulse charging technology, and auto cut-off. With dual-mode charging and comprehensive protections, it delivers safe and efficient charging for both rechargeable and alkaline AA/AAA batteries:
1. 4-slot smart charger for Ni-MH/Ni-Cd 1.2V AA/AAA and alkaline 1.5V AA/AAA batteries
2. Independent charging channels – each slot charges and stops automatically when fully charged, with no mutual interference
3. Pulse charging technology – effectively controls battery polarization for high-speed and efficient charging
4. LED indicators – intuitive visual status for each slot
5. Multiple charge termination detections: -ΔV and 0ΔV detection, maximum voltage protection (1.55V ±0.05V for Ni-MH/Cd, 1.65V for alkaline), and maximum time protection (9H)
6. Bad battery identification – Ni-MH/Cd batteries below 0.2V cannot be charged; batteries below 0.7V trigger 3-LED flashing alarm within 10 seconds
7. Alkaline battery charging mode – charges alkaline AA/AAA batteries at 1.65V 100-150mA
8. Comprehensive protections: reverse-polarity protection, short-circuit protection, over-temperature protection (auto cut-off at ≥60°C ±5°C), and input detection
9. AC 100-240V global input – no adapter needed, plug and play
10. Compact design: 108×71×65.5mm, 102g

Inquiry

Application Scenarios

Specification

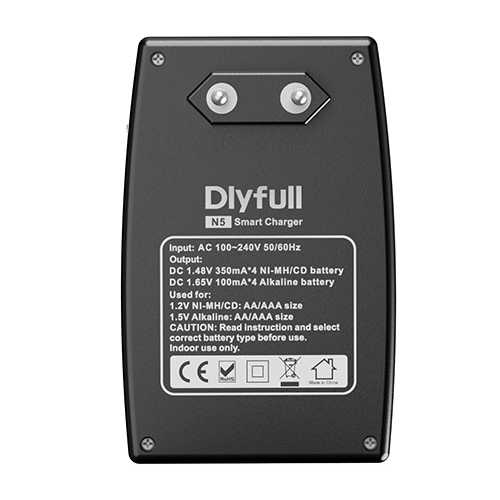

Model NameN5
InputAC 100-240V 50/60Hz
Output

1.2V Ni-MH/Ni-Cd AA/AAA: 350mA*4
1.5V  Alkaline AA/AAA: 100-150mA*4

chargeable batteries

1.2V Ni-MH/Ni-Cd :  AA, AAA
1.5V Alkaline  : AA, AAA

Functions

• Microcomputer control system
• Independent 4-slot charging with auto cut-off
• Pulse charging technology
• Ni-MH/Cd and alkaline dual-mode charging
• Bad battery identification (<0.2V not charged; <0.7V alarm)
• Multiple charge termination: -ΔV, 0ΔV, max voltage, max time

Smart Protections

• Overcharge protection (auto cut-off)
• Maximum voltage protection (Ni-MH/Cd: 1.55V ±0.05V; Alkaline: 1.65V)
• Reverse-polarity protection
• Short-circuit protection
• Maximum time protection (9H)
• Over-temperature protection (≥60°C ±5°C auto cut-off)
