charging for Ni-MH/Cd AA/AAA & 6F22 9V Batteries

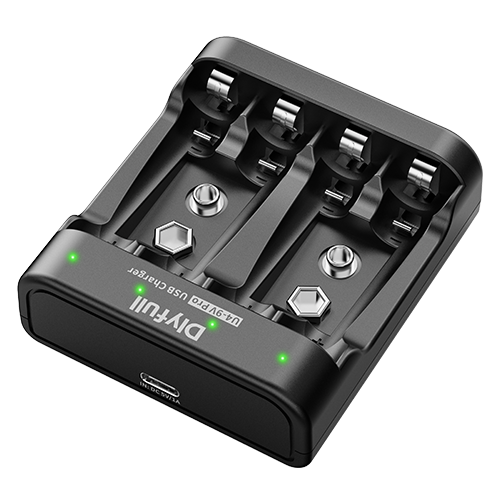

U4-9V - 4+2 Slots USB Ni-MH Charger

Dlyfull's compact 4-slot multi-type charger features pulse charging technology, series charging design, and auto cut-off. With LED status indication and multiple protections, it delivers safe and efficient charging for both AA/AAA and 9V batteries:
1. 4-slot USB charger for Ni-MH/Cd 1.2V AA/AAA and Ni-MH/Cd 9.0V 6F22 rechargeable batteries
2. independent charging technology – can support to change 1~4pcs AA/AAA size batteriea and 1-2pcs 9V batteries
3. Supports any combination of AA/AAA and 9V batteries charging simultaneously
4. Pulse charging technology with multi-parameter detection – safe and efficient charging
5. Multiple charge termination detections: -dV, 0dV, maximum voltage, and maximum time protection (12H)
6. Non-rechargeable battery detection – pre-charge detection with fast flashing alarm
7. White LED indicators – flashing (charging), steady on (fully charged), fast flashing (alarm: bad battery or non-rechargeable battery)
8. Comprehensive protections: overcharge protection, short-circuit protection, reverse-polarity protection (won't damage charger), bad battery identification, and input detection
9. Type-C input for stable and convenient connection
10. Compact and lightweight design: 75×68×25mm, 58g

Inquiry

Application Scenarios

Specification

Model NameU4-9V
InputDC 5V/1A (Type-C)
Output

1.2V Ni-MH/Cd AA/AAA:

DC 1.2V : 350mA*4
9V ( 6F22) Ni-MH :

60mA*2

chargeable batteries

1.2V Ni-MH/Cd : AA, AAA

9V ( 6F22) Ni-MH

Features

• pulse charging with multi-parameter detection
• independent charging for AA/AAA : can charge 1~4 pcs batteries at the same time
• independent charging for 9V batteries
• non-rechargeable battery detection with alarm
• bad battery identification
• multiple charge termination: -dV, 0dV, max voltage, max time
• microcomputer control system

Smart Protections

• overcharge protection (auto cut-off)
• short-circuit protection
• reverse-polarity protection (won't damage charger)
• maximum time protection (12H)
• maximum voltage protection
