charge for 1.2V Ni-MH/Cd AA AAA batteries

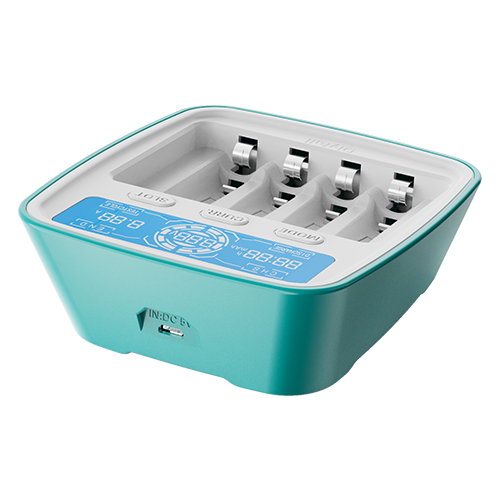

4 Slot USB Intelligent Charger ( Model: UT1 )

1. 4 Slots LCD Intelligent Ni-MH/Ni-Cd AA/AAA Dedicated Charger
2. The four slots supports charge, discharge, cycle and capacity test functions
3. Type-C input design,indoor & outdoor Portable, user-friendly

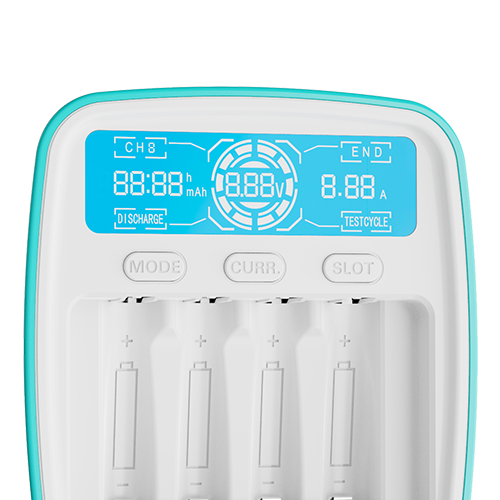

4. Backlit LCD Display: charging time, voltage, capacity progress circle, working mode
5. Multiple intelligent overcharge protection
6. Three buttons (Current/ Slot/ Mode) for manual operation including function mode selection and charging current selection;
7. Blue breathing light design at bottom side

Inquiry

Application Scenarios

Specification

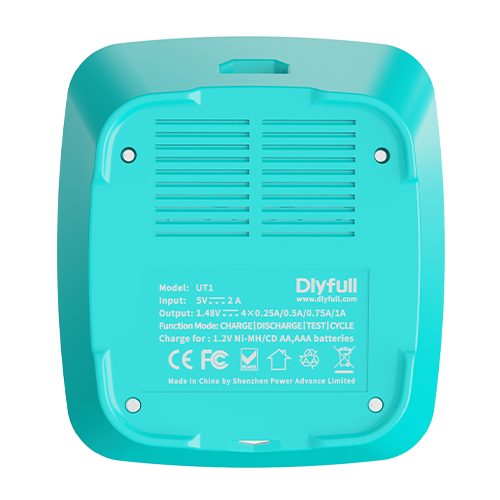

Model NameUT1
InputUSB Type-C, DC5V/2A
Output

1.2V for Ni-MH/Ni-cd: 0.2A/0.5A/0.7A/1A*4

chargeable batteries

1.2V for Ni-MH/Ni-cd:AA/AAA

Functions

CHARGE: charge battery

DISCHARGE: discharge the battery to be empty and delete the battery memory effect

TEST: test the battery capacity

CYCLE: refreshing the old batteries to be their max.capacity after

Smart Protections

over charge protection

over Voltage(Max. voltage )protection

over temperature protection

short circuit protection

0dv, -dv detection

low voltage activation

reverse connection protection
