charging for 1.2V Ni-MH/Cd , 3.7V /3.85V Li-ion, 3.2V LiFePO4, 9V (6F22) Ni-MH Batteries
Dlyfull’s high-end intelligent chargers feature dependent charging, LCD display, and multiple modes ( charge , discharge , refresh , capacity test etc). With optimized current, mixed‑battery support, and comprehensive safety, they deliver superior charging performance:

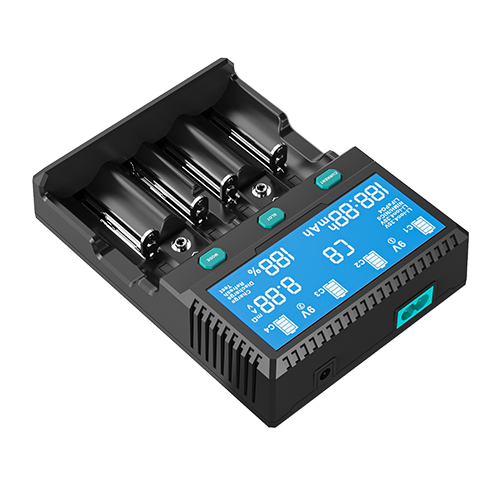

1. 4+2-slot LCD intelligent multi-function charger
2. supports charging for 5 different types of batteries
3. the fourth slot supports charge, discharge, refreh and capacity test functions
4. dual input design: AC power cord + DC12/3A

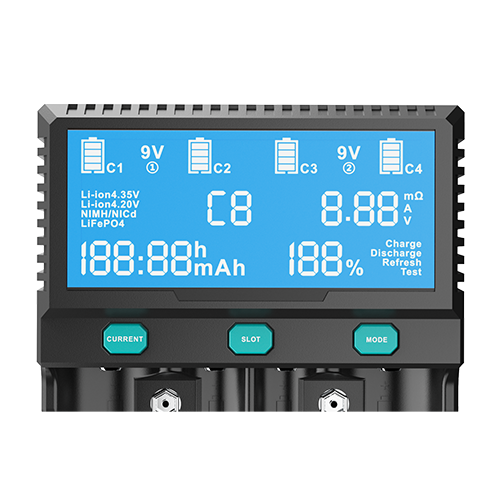

5. blue LCD display: battery slot number, battery type, time, voltage, capacity, progress percentage, working mode, internal resistance, current
6. multiple intelligent overcharge protection
7. three buttons (Current, Slot, Mode) for manual operation including function mode selection, charging current selection, and battery type selection
8. maximum support for D-type/32650 batteries; longest supported battery length is 71mm
9. certificates: CE / ROHS /FCC
10. support OEM private brand
| Model Name | A4 |
| Input | AC 100-240V 50-60Hz 0.8A DC 12V 3A |
| Output | 3.7V Li-ion：2A*2 ; 1.5A*3 ; 0.2A / 0.5A / 0.8A / 1A*4 3.85V Li-ion：2A*2 ; 1.5A*3 ; 0.2A / 0.5A / 0.8A / 1A*4 3.2V LiFePO4：2A*2 ; 1.5A*3 ; 0.2A / 0.5A / 0.8A / 1A*4 1.2V NiMH/Ni-cd：0.2A / 0.5A / 0.8A / 1A*4 9V NiMH: 60mA / 120mA*2 |
| chargeable batteries | 3.2V LiFePO4 & 3.7/3.85V Li-ion: 10340 / 10440 / 14500 / 14650 / 16340 / 17335 / 17500 / 17670 / 18350 / 18500 / 18650 / 18700 / 20700 / 21700 / 22650 / 22700 / 26500 / 26650 / 32650 1.2V Ni-MH/Cd: AAAA / AAA / AA / A / SC / C / D 9V Ni-MH 6F22 |
| Functions | CHARGE: charge battery DISCHARGE: discharge the battery to be empty and delete the battery memory effect TEST: test the battery capacity REFRESH: refreshing the old batteries to be their max.capacity (only slot 4 has the discharge, test and refresh function) |
Smart Protections | over charge protection over voltage（max. voltage ）protection over temperature protection 0V activation function 0dv, -dv detection max. capacity protection short circuit protection reverse connection protection |
