charging for 3.7V Li-ion battery :10440~26650
Dlyfull's 2-slot LCD USB charger features real-time battery level display, smart CC-CV charging, and low-voltage activation. With clear visual status and automatic current adaptation, it makes charging simple and visible:

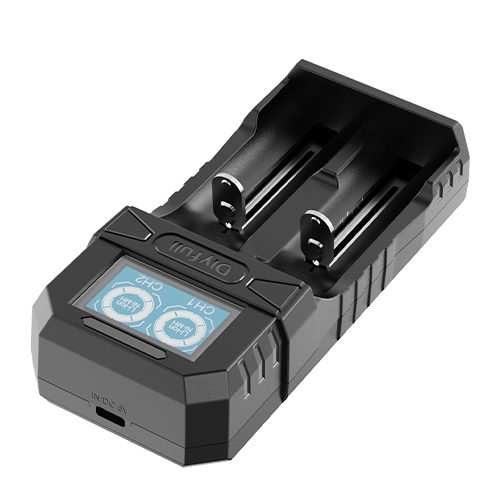

1. 2-slot USB charger for 3.7V Li-ion batteries
2. Supports multiple battery sizes: 10340, 10440, 16340, 17335, 17500, 18650, 21700, 22650, 26650, and more
3. Independent charging channels – each slot charges and stops automatically when fully charged, with no mutual interference

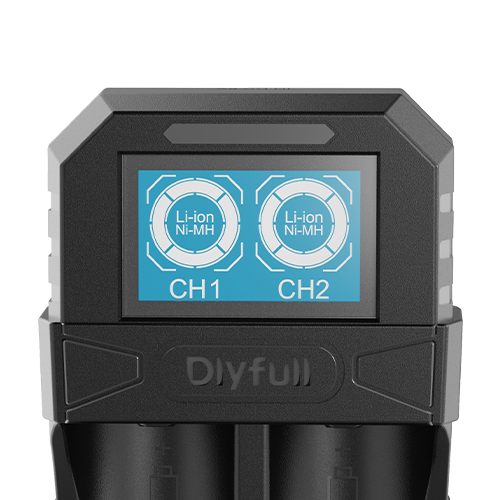

4. Clear LCD display with blue backlight – shows Li-ion indication, real-time 4-level battery capacity indicator, and charging status for each slot at a glance
5. Smart CC-CV charging for safe and reliable charging
6. 0V activation function (for batteries with protection board)
7. Low-voltage activation (1.9–2.8V) with trickle current (200mA ±50mA)
8. Bad battery detection – batteries below 1.9V identified as faulty
9. Intelligent input power adaptation – automatically adjusts charging current based on adapter capability; alerts when input power is too low (adaptive current <200mA ±50mA)
10. Type-C input for stable and convenient connection
11. Alarm indicators: flashing battery frame for reverse connection, short circuit, or faulty battery; flashing four-slot frames for low input power
| Model Name | DL2 |
| Input | DC 5V/2A (Type-C) |
| Output | DC 4.20V ±0.05V : 1000mA*2 ±10% (adaptive, per channel) |
| chargeable batteries | 3.7V Li-ion: 10340, 10440, 16340, 17335, 17500, 18650, 21700, 22650, 26650, and more |
| Functions | • Precise CC-CV charging mode |
Smart Protections | • Overcharge protection (precise auto cut-off) |
